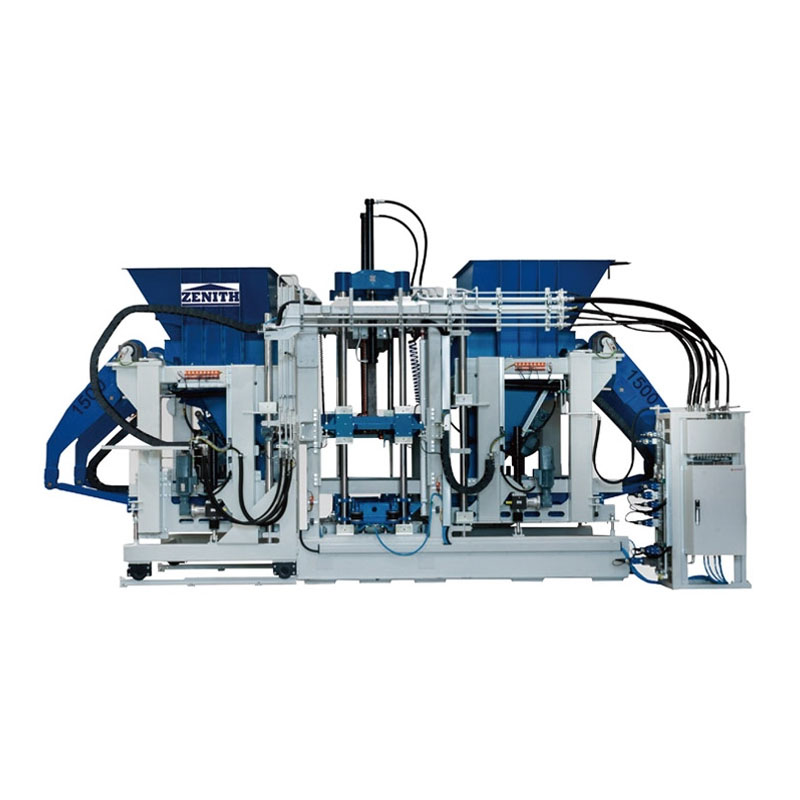

ZENITH 1500 Automatic Block Making Machine

1500 fully automatic fixed single board block forming machine

A model of German "craftsmanship"

Top intelligent production equipment

ZENITH 1500 Automatic Block Making Machine is the latest top-level intelligent production equipment developed by Zenith. It can produce various standard concrete products such as hollow bricks, paving bricks, curbstones and solid bricks, as well as a variety of non-standard special products, garden landscape products, etc., which can almost meet the needs of all customers.
In terms of design, this equipment breaks the shackles of inherent thinking and uses a large number of high-quality screw connectors, including the vibration table, the beam frame of the motor and the side frame parts, which are all screw connection designs, so that the equipment has an ultra-low maintenance rate and failure rate, which can easily meet the different production conditions of customers and greatly shorten the replacement time of wearing parts.
The ZENITH 1500 Automatic Block Making Machine is also equipped with a variety of cutting-edge intelligent equipment and systems, such as the latest control and automatic diagnosis system, servo vibration system, etc., which can provide all-round support to operators. In addition, it also contains various convenient and practical programs to control expansion devices or equipment, such as automatic rapid mold change system, various color batching equipment and pressure head cleaning device, etc., to improve production efficiency and product quality.

Intelligent interactive system

fast mold change system

servo vibration system

hanging fabric technology

Technical Advantage

Servo vibration system

Automatic locking device for fabric device

Pneumatic quick-change pressure head

Hanging fabric

Servo vibration system:
The ZENITH 1500 Automatic Block Making Machine is equipped with the latest developed servo vibration system. This vibration system has dense and high-excitation vibration force, thus ensuring fast and efficient production of products. Especially for large products and high-quality products that need to be produced through pre-vibration and transition vibration, the effect is very good.

Suspended cloth technology:
The hanging design of the cloth frame realizes the optimization of cloth. The cloth frames of the upper and lower materials are separately assembled on the cloth device frame and can be quickly replaced; the scraper frame can be adjusted as needed, and the operator can continuously monitor the situation of the cloth frame lining, so as to adjust the use of the next batch of materials.

Quick mold change:
The equipment uses a new type of automatic locking device for the cloth device. The fabric device can automatically connect to the main machine quickly, accurately and safely through electric drive, so as to realize fast mold replacement and save time and cost for maintenance.

PLC intelligent interactive system:
The latest automatic diagnosis function helps operators choose the best solution and minimize production downtime. Using the latest database, all information can be recorded, stored and analyzed.

Automatic diagnosis system:
Through ProfiNet and Ethernet technology, all controllable movements are monitored using absolute numerical coding technology, so when a power outage occurs, there is no need to spend time on calibration. In addition, the equipment is equipped with remote control, and Zenith service engineers can provide technical support to Zenith equipment anywhere in the world through the "cloud platform system".

Performance scalability:
The equipment has performance scalability and is equipped with various convenient and practical programs to control expansion devices or equipment, such as automatic rapid mold change system, various color batching equipment and pressure head cleaning device.

Machine front view

Product Parameter

1500 Block Making Machine Production Line Technical Overview

Engineering Application Cases

Community pavement

Swimming pool pavement

Municipal pavement

Product Samples

Curbstone

Rectangular brick

Production batching system
