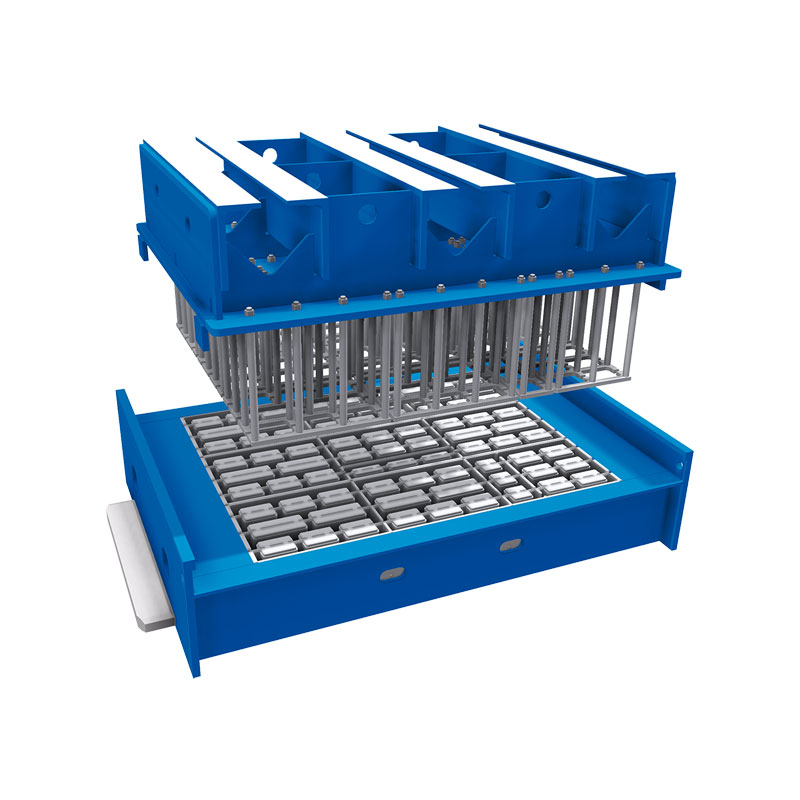

Hollow Block Mould

Hollow block moulds are made of high quality wear-resistant steel. Through the wire cutting process, the gap between the upper and lower sides of the mould is reasonable, clearance 0.8-1mm, which make the mould strong and durable. The integrated heat treatment process makes the moulds more wear-resistant and durable. According to the requirements of different customers, it can provide a variety of specifications and designs. The mould adopts flexible design, according to customer needs, the mould core, pressure plate can be freely replaced, also we provide welding, modular thread locking design and manufacture.

You can rest assured to buy Hollow Block Mould from our factory. For superstructure moulds in various designs, ZENITH is the benchmark in terms of reliability and product diversity. It is here where our strengths and skills in both craftsmanship and modern CNC- technology have the maximum positive impact on the value of our moulds.

Mould Design:

A) MOULD DESIGN WELDED

High quality wear resistant steel

Shoe clearance 0,5-0,8 mm

Holding web thicknesses screwed and therefore changeable

Changeable shoes with inner pots on the tamper head

Robust and proven design

Optimal exploitation of the mould

Optional withdraw sheet design

Cost-effective production

Traditional and proven design

B) SCREWED MOULD DESIGN

Flexible design of mould Shoe clearance 0,5-0,8 mm

Holding web thicknesses and insets screwed

Changeable shoes with inner pots on the tamper head

Stress-free construction

Optional withdraw sheet design

nterior parts feasible in nitrated(62-68 HRC) version

Based on customer requirements, we can also supply the combination of a welding and modular threaded connection design.
