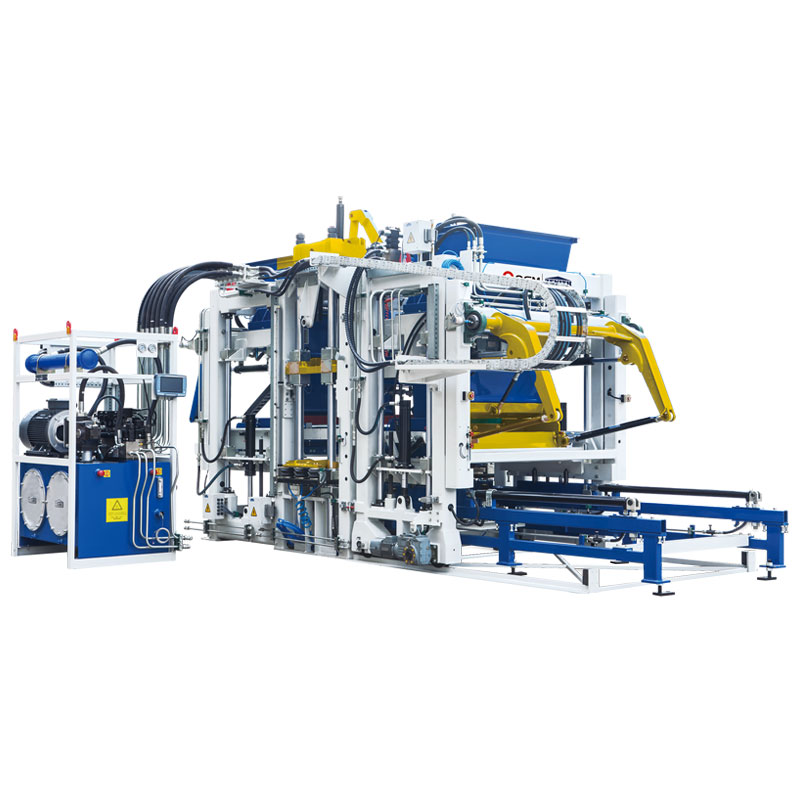

ZN900CG Concrete Block Machine

As the professional manufacturer, we would like to provide you ZN900CG Concrete Block Machine. The ZN900CG concrete block machine is a machine designed in Germany and produced in China, fully complying with relevant European standards. This model can be regarded as a professional upgraded version of the ZN900C, equipped with a quick die change system, Italian GSEE encoder and hydraulic system, with superior performance and in line with European standards.

Main Technology Features

1）Latest Servo Vibration Technology

The ZN900CG Concrete Block Machine is equipped with the newly developed servo vibration system, which can ensure the vibration motors are in a synchronized state, which can guaranteethe vertical output of compaction force. Also avoid the shear stress damage of the horizontal compaction force to the machine and prolong the machine lifespan. The motor speed can reach more than 4000 rpm, which canprovide bigger compaction force the block quality wouldbe greatly improved.

2）Automatic Mould Clamping System with AirBags

There are air bags on the tamper head two side ofmachine. After the mold is pushed into place, the airbag of the tamper head is inflated and tightened automatically. Finally, the airbag of the mold frame is inflated to clampthe mold frame automatically. In this way, it can help tosave a lot of time for changing different moulds, reduce the vibration noises also increase production efficiency.

3）Double Vibration System

Vibration table adopts high-duty Sweden HARDOX steel, consisting of dynamic table static table, which can greatly improve the vibration efficiency. While there are another two vibrators on top, to increase compaction &guarantee the high quality of concrete blocks.

4）Frequency conversional technology control

QGM control system adopts SIEMENS PLC, Touchscreen, contactors buttons etc., which perfectly combine the automatic technology and advanced systemfrom Germany.SIEMENS PLC has automatic trouble-shooting function for easy maintenance also automatic-locking to avoid mechanical accidents caused by operational mistakes. While the SIEMENS touch screencan display rea-time production status achieve easyoperation by visualization representation. In case any partis broken in the future, the replacement part can be sourced locally, which can save a lot of time cost.

5）Intelligent Cloud System

You can rest assured to buy ZN900CG Concrete Block Machine from our factory. QGM intelligent equipment cloud system realizes onlinemonitoring, remote upgrade, remote fault prediction andfault self-diagnosis, equipment health status evaluation; generates equipment operation and application statusreports and other functions; with the advantages ofremote control operation, quick troubleshooting &maintenance for the clients. Everything is interconnected, and the production and operation of equipment can beseen through the network in every corner of the world.

Technical Data

Maximum Forming Area	1,300*650mm
Block Height	40-300mm
Cycle Time	14-24s (depending on block type)
Servo Vibration Force	100KN
Pallet Size	1,350*700*（14—35）mm
Servo Vibration Motors in Bottom	2*12KW/Set
Top Vibration Motors on Tamper Head	2*0.55KW
Control System	SIEMENS
Total Power	52.6KW
Total Weight	17T (including facemix device &mould)
Machine Dimension	6,300×2,800×3,500mm

Production Capacity

Block Type	Dimension(mm)	Pictures	Qty/Cycle	Production Capacity (Per 8hs)
Hollow Block	390*190*190		9	10,800-13,500pcs
Rectangular Paver	200*100*60-80		36	43,200-50,400pcs
Interlocks	225*112,5*60-80		25	30,000-37,500pcs
Curstone	500*150*300		4	4,800-5,600pcs
