ZENITH 940SC Pallet-Free Block Machine

940SC all-purpose concrete product forming machine (without pallet)

A model of German "craftsmanship"

All-round and efficient production equipment

The fully automatic mobile multi-layer production equipment - ZENITH 940SC Pallet-Free Block Machine is one of the most advanced equipment of its kind in the world. This equipment integrates multiple functions and can mass-produce almost all hollow bricks, paving bricks, curbstones and permeable bricks and other concrete products used on the market. It combines high production capacity, high efficiency and low failure rate, and is the most competitive star product.
This model of equipment has internationally advanced technology and can produce a variety of non-standard special products that cannot be produced by single-pallet equipment. It can mass-produce high-quality concrete cable troughs, inspection wells, prefabricated parts and other special products in the most economical way. The product specifications can reach 1.24 meters in length and 1 meter in height.
The equipment has good adaptability to raw materials and can meet the requirements of large-scale use of solid waste and fly ash and other industrial waste residues as raw materials. The multi-layer production function of the equipment has huge advantages. The wet brick stacks can be directly maintained and then packaged, eliminating many intermediate transportation processes.

Technical Advantage

Intelligent interactive system

Mobile production

Hydraulic drive

Multi-function production cleaning

Intelligent operation:
The ZENITH 940SC Pallet-Free Block Machine adopts the internationally advanced intelligent interactive system, equipped with Siemens touch screen and data input and output devices. The system has product formula management and operation data collection functions, and multiple languages are available. The visual operation interface is friendly, and the control system includes safety logic control and fault diagnosis system.

Hydraulic drive system:
The hydraulic power is composed of two sets of coupled piston pumps. The speed and pressure of the hydraulic action can be precisely controlled simultaneously or independently through proportional valves. All parameters can be set on the touch screen. The main actions of the machine, such as the movement of the vibration table, the lifting of the mold frame and the pressure head, and the movement of the fabric frame, are all driven by the hydraulic system independently developed by Zenith.

Mobile production:
The ZENITH 940SC Pallet-Free Block Machine is equipped with high-hardness guide rail wheels to realize mobile production. The hydraulic motor drive is stable and reliable, and the front wheel is equipped with a hydraulic brake system for precise positioning. The production movement can be controlled and set through the touch screen.

Coaxial synchronous motion:

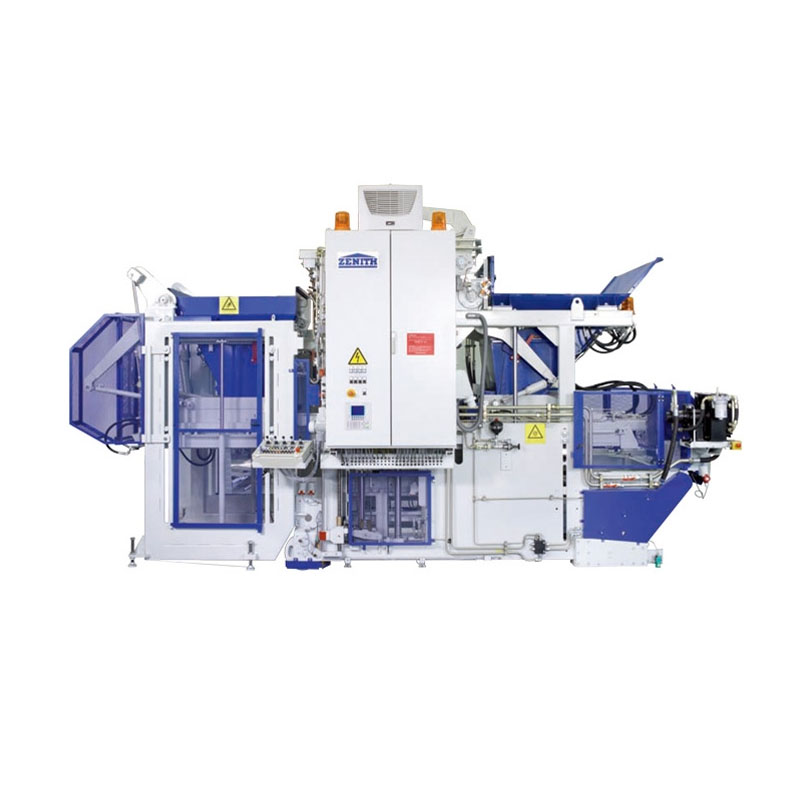

Machine front view

The mold frame and the press head of the equipment move synchronously along the large-sized guide posts and guide shafts through chains and lever shafts, ensuring that the mold frame and the press head can move safely, stably and accurately; in addition, a linear encoder can be optionally installed to further enhance the accuracy of the movement.

Multifunctional feeding system: The system consists of a hopper, guide rails, feeding box and lifting device; the unique hydraulically driven mold scraper can ensure the cleanliness of the product surface, and the feeding box is equipped with a hydraulically driven fast feeding grid to ensure the uniformity of the feeding; the height-adjustable mold brush fixed on the feeding box is used to clean the upper mold part of the mold.

Product Parameter

940SC block making machine production line layout diagram
