ZN1000-2C Automatic Block Machine
  • ZN1000-2C Automatic Block MachineZN1000-2C Automatic Block Machine

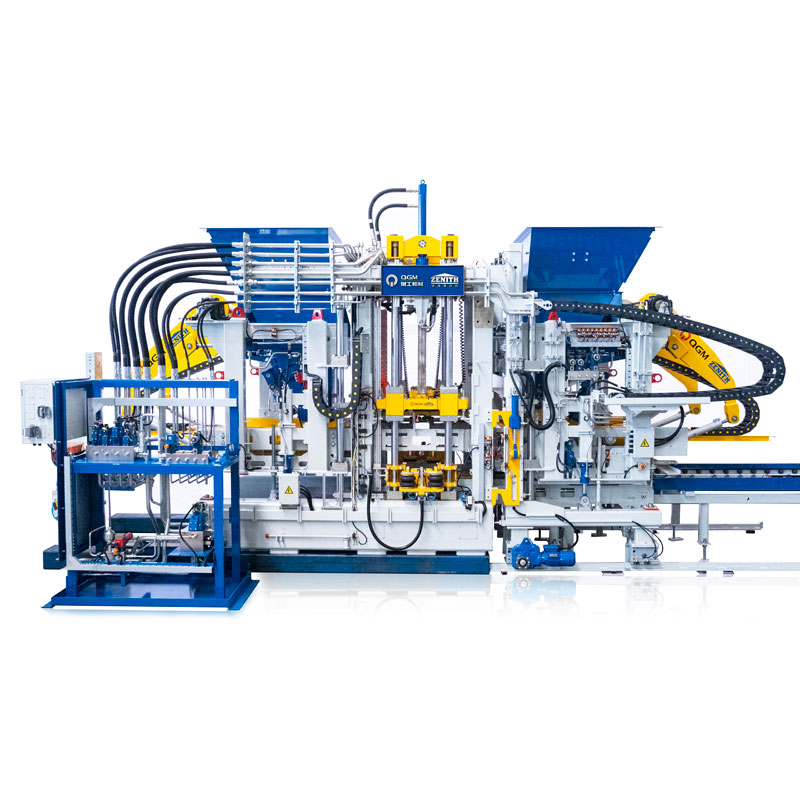

ZN1000-2C Automatic Block Machine

ZN1000-2C Automatic Block Machine with the central control system, the customer is able to guarantee the quality of blocks and service in accordance with the standards and requirements of different projects. It could produce around 800 m2 quality paving blocks per day(8 hours) which can enhance their competitiveness in the industry.

The ZN1000-2C Automatic Block Machine is equipped with a central control system, which enables customers to ensure the quality and service of blocks according to the standards and requirements of different projects.

Main Technology Features

1)Frequency conversional technology control

Reduce the motor starting current and soft start function control, prolong the life of the motor. Main vibration adopt low frequency standby, high frequency operation, improve the speed of operation and product quality. Reduce mechanicalaccessory and motor damage, prolong thelife of the motor and mechanical. The frequency conveter saving about 20%-40% power than the traditional conveter.

Zn1000 2c Automatic Block Machine

2)Germany Siemens PLC control system, Siemens touchscreen, Germany

The ZN1000-2C Automatic Block Machine is easy to operate, has low failure rate, stable operation and high reliability. Use the most-advanced industrial internet technology, realize remote trouble-shooting & maintenance. PLC and touchscreen use the PROFINET internet together, convenient for system diagnosis and WEB expansion. Achieve problem diagnosis and alarm system constantly, convenient for machine maintenance and troubleshooting. PLC running data for permanent preservation.

3)Vibration System

Vibration table consists with dynamic table and static table. When vibration begin,dynamic table vibrate,static table remain static. The structure is designed to ensure the amplitude of the vibration table, so as to ensure the high quality of concrete products. Vibration table using HARDOX steel. Vibration mode: using the vibration table vibration +top mould vibration; vibration motor installation vibration damping device and air cooling device.

4)Feeding System

Motor use SEW motors, which control two mixing shafts. Feeding frame, bottom plate and mixing blade are made of high-duty HARDOX steel, the location of bottom plate can be adjusted.Feeding system have sealing device to prevent leakage. The door of the discharging gate is controlled by the SEW motor.

Zn1000 2c Automatic Block MachineZn1000 2c Automatic Block Machine

5)Hydraulic Station

Hydraulic pumps and hydraulic valves adopt international brands. Tube uses "Flange Connection, convenient installation and maintenance. Multi-point pressure detection point, convenient detection. Digital temperature and blockage alarm function. Motor and pump connection, flange connection, good coaxial. Dynamic proportional valve and constant power pump, speed regulation, voltage regulation, energy saving.

Zn1000 2c Automatic Block MachineZn1000 2c Automatic Block Machine


Technical Data

Max. Forming Area 1,100*820mm
Height of finished product 20-300mm
Moulding Cycle 15-25s
Exciting force 80KN
Pallet Size 1,200*870*(12-45)mm
Forming block number 390*190*190mm(10 blocks/mould)
Vibration table 2*7.5KW
Top vibration 2*0.55KW
Electrical control system SIEMENS
Total weight 42.25KW
Machine Dimension 12T


Production Capacity

Block Type Output ZN1000C Block
Making Machine
240*115*53mm
Zn1000 2c Automatic Block Machine
Number of formed blocks(block/ mould) 50
Cubic meter/ hour(m3/ hour) 13-18
Cubic meter/ day (m3/ 8 hours) 1005-1400
Number of brick (blocks/ m3) 683
390*190*190mm
Zn1000 2c Automatic Block Machine
Number of formed blocks(block/ mould) 9
Cubic meter/ hour(m3/ hour) 22.8-30.4
Cubic meter/ day (m3/ 8 hours) 182.5-243.3
Number of brick (blocks/ m3) 71
400*400*80mm
Zn1000 2c Automatic Block Machine
Number of formed blocks(block/ mould) 3
Cubic meter/ hour(m3/ hour) 69.1-86.4
Cubic meter/ day (m3/ 8 hours) 553-691.2
Number of brick (blocks/ m3) 432-540
245*185*75mm
Zn1000 2c Automatic Block Machine
Number of formed blocks(block/ mould) 15
Cubic meter/ hour(m3/ hour) 97.5-121.5
Cubic meter/ day (m3/ 8 hours) 777.6-972
Number of brick (blocks/ m3) 2160-2700
250*250*60mm
Zn1000 2c Automatic Block Machine
Number of formed blocks(block/ mould) 8
Cubic meter/ hour(m3/ hour) 72-90
Cubic meter/ day (m3/ 8 hours) 576-720
Number of brick (blocks/ m3) 1152-1440
225*112.5*60mm
Zn1000 2c Automatic Block Machine
Number of formed blocks(block/ mould) 25
Cubic meter/ hour(m3/ hour) 91.1-113.9
Cubic meter/ day (m3/ 8 hours) 728.9-911.2
Number of brick (blocks/ m3) 3600-4500
200*100*60mm
Zn1000 2c Automatic Block Machine
Number of formed blocks(block/ mould) 36
Cubic meter/ hour(m3/ hour) 103.7-129.6
Cubic meter/ day (m3/ 8 hours) 829.4-1036.8
Number of brick (blocks/ m3) 5184-6480
200*200*60mm
Zn1000 2c Automatic Block Machine
Number of formed blocks(block/ mould) 4
Cubic meter/ hour(m3/ hour) 72-90
Cubic meter/ day (m3/ 8 hours) 576-720
Number of brick (blocks/ m3) 576-720
