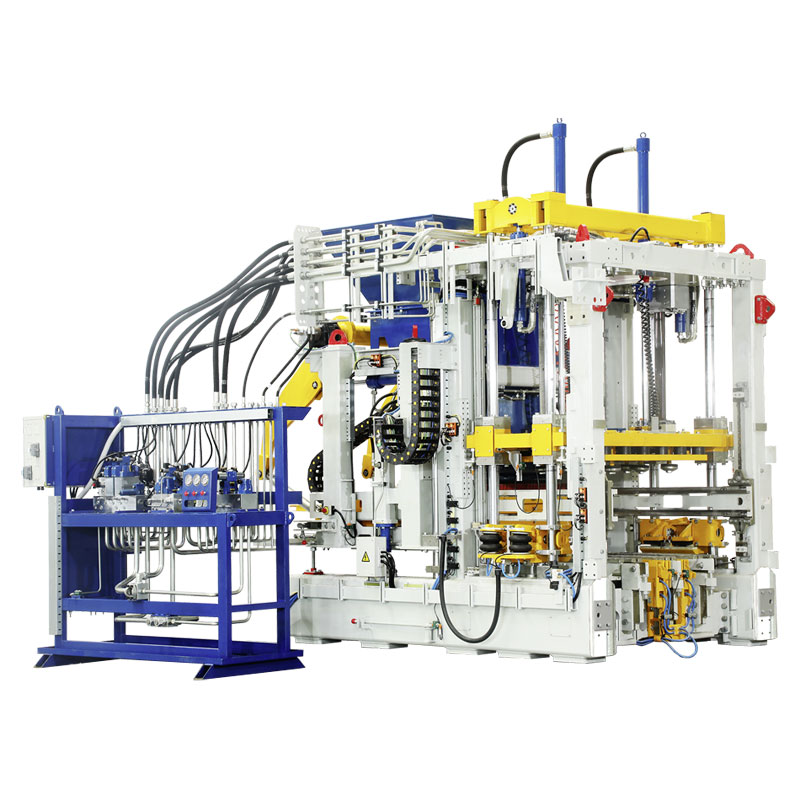

ZN1200-2C Concrete Block Machine

ZN1200-2C Concrete Block Machine adopts advanced German technology, representing the leading level in the field of global block machinery. German technology is well-known for its rigor and simplicity, with a particular emphasis on overall performance, efficiency and machine quality.ZN series products feature high cost performance, adopting ZN1200-2C Concrete Block Machine equipment manufacturing technology and are more focused on the overall performance, efficiency and product quality.

efficiency and lower fault rate and having outstanding advantages in performance, efficiency, energy-saving, environmental protection and so on.

1）High-efficiency vibration

equipped with advanced German vibration technology, the vibration table is composed of a dynamic table and static table. By operating continuously, there is no need for frequent start-up. which can effectively and evenly transform vibration force and better control the product. The forming time of the product is ultimately shorter and the density is higher.

2）Compulsory feeding

the mixing shaft is controlled by Germany SEW feeding motor, and the feedbox, base board and agitator blade adopt high strength HARDOX steel, providing outstanding sealing performance. Through the compound feeding method of compulsory mixing and reciprocating oscillation, the feeding is more uniform and the product quality is greatly improved.

3）Frequency conversion control

adopting German frequency conversion control technology, the vibration of the ZN1200-2C Concrete Block Machine adopts low frequency standby and high frequency operating, improving operating speed and product quality. It can reduce the compact on mechanical parts and motor and prolong the life span of machinery, saving power by 20%-30% compared to operation and control of traditional motors.

4）Full-automatic control

advanced German automatic control technology and visual operation of intelligent interactive system achieves man-machine dialogue, making it easier to operate the machine. And it saves labor cost to the optimal extent, with low fault rate and stable operation. It also has functions of product formula management and collecting operating data.

5）High-efficiency hydraulic system

with a high end hydraulic pump and hydraulic valve, the hydraulic operating speed, pressure and stroke can be adjusted based on different products for stable, high efficiency and energy saving operation.

6）Cloud-service platform

with the combination of cloud technology, general technology of data protocol, mobile internet technology, equipment modeling and big data statistics, the data collecting, on-line from QGM.

Technical Data

Production Capacity

Block Type	Dimension(mm)	Pictures	Qty/Cycle	Production Capacity (Per 8hs)
Hollow Block	390*190*190		9	14,400-16,800pcs
Rectangular Paver	200*100*60-80		36	52,800-61,600pcs
Interlocks	225*112.5*60-80		25	42,000-49,000pcs
Curstone	500*150*300		4	4,800-5,600pcs
