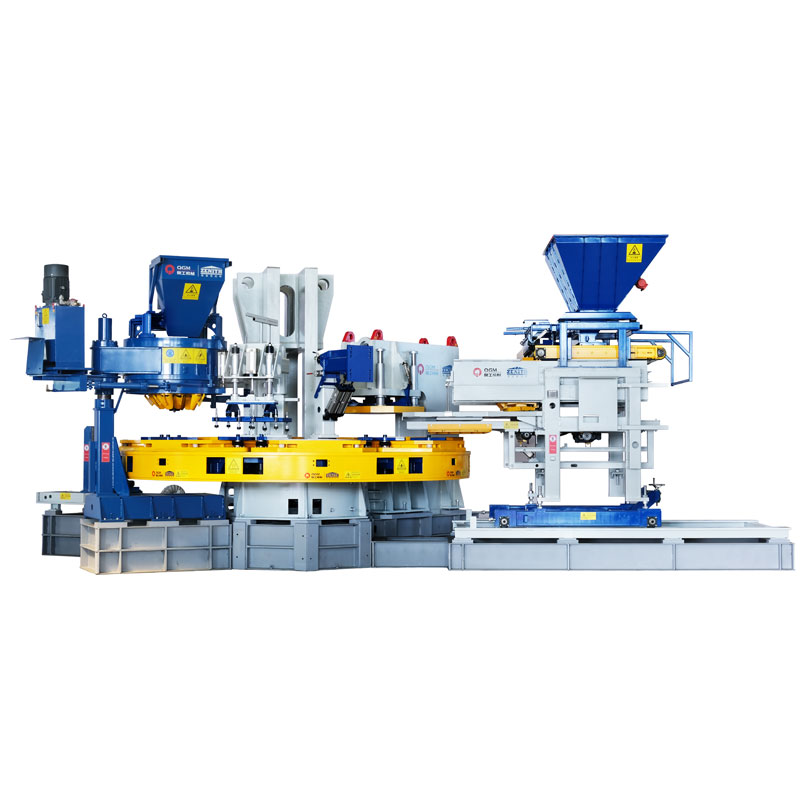

HP-1200T Hermetic Press Machine

HP-1200T Hermetic Press Machine is an ideal machine for the production of paving slabs or large paving stones. The sealed press is able to produce high-quality, high-density square and rectangular slabs. These slabs can be used for terraces or paving, but also for large slabs in public squares and buildings (such as central stations, airports, shopping centers, etc.).

Seven-station cycle brick making

1. Fabric unloading station

2. Fabric dispersing station

3. Maintenance station (mold changing station)

4. Bottom material unloading station

5. Pre-pressing station

6. Main pressing station

7. Demolding station

Technical description

1. The main pressure adopts a large-diameter transition oil tank filling device, which can respond quickly, move sensitively, and can output tons of pressure.

2. The hydraulic station adopts a variable pump, which adjusts the speed and pressure through a proportional valve, which is energy-saving and easy to operate.

3. The turntable adopts an ultra-large slewing bearing, which is controlled by a servo motor with an encoder, with stable operation and precise control.

4. HP-1200T Hermetic Press Machine adopts an advanced visual control system, and the PLC adopts the Siemens S7-1500 series.

5. The surface material unloading device has a built-in planetary mixer, and uses a quantitative turntable for unloading. The unloading amount is accurate and stable each time.

6. The bottom material unloading device can quantitatively unload the bottom material through a variety of transition devices, thereby controlling the height of the finished bricks, greatly saving the number of molds.

Equipment parameters

Model	HP-1200T
Number of stations	7
Brick pattern arrangement (list)	900*900（1 piece/board）
	500*500（2 pieces/board）
	400*400（4 pieces/board）
Maximum brick thickness	80mm
Maximum main pressure	1200t
Diameter of main pressure cylinder	740mm
Weight (including one set of molds)	About 90,000kg
Power of main machine	132.08KW
Cycle cycle	12-18s
Length, width and height	9000*7500*4000mm
