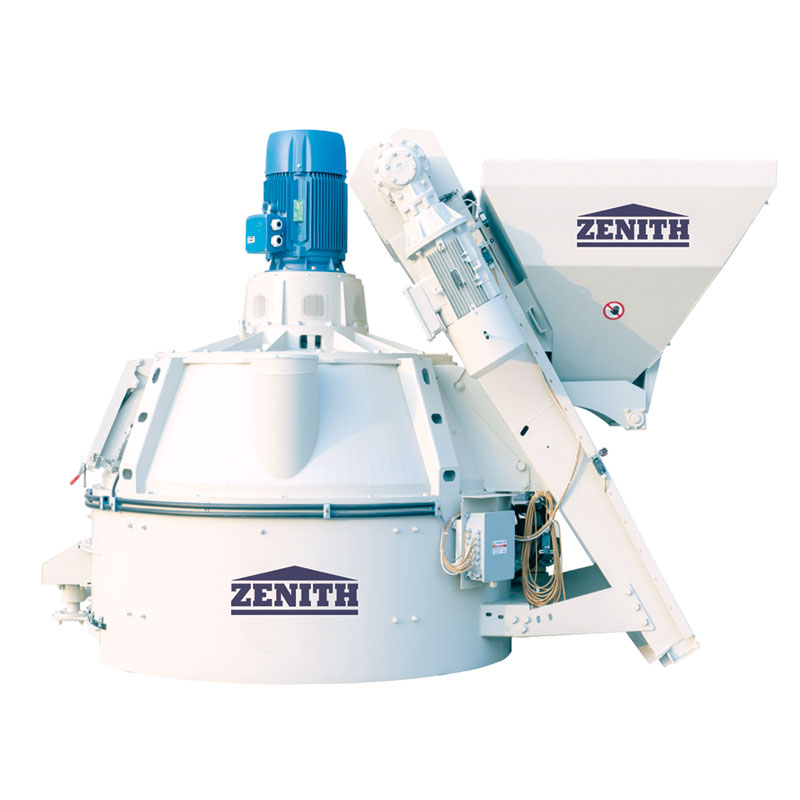

Planetary Mixer

The planetary mixer is driven by a mixing motor and a planetary gear reducer. The reducer housing is driven by internal gears to rotate, and 1-2 sets of planetary arms on the reducer rotate on their own, allowing the mixer to rotate 360 ° without dead corners and mix materials quickly and efficiently. Different fixtures and materials can be used to meet a wide range of mixing materials.

Send Inquiry

Product Description

The planetary mixer is driven by a mixing motor and a planetary gear reducer. The reducer housing is driven by internal gears to rotate, and 1-2 sets of planetary arms on the reducer rotate on their own, allowing the mixer to rotate 360 ° without dead corners and mix materials quickly and efficiently. Different fixtures and materials can be used to meet a wide range of mixing materials.

The planetary mixer has high mixing uniformity, reaching over 90%, short mixing cycle, high production efficiency, and a wide range of output models. It can not only be used for laboratory mixing, but also for large-scale production lines. Another advantage of planetary mixers is that the discharge is clean and there is no residual material at the bottom of the material cylinder.

Technical Parameters

ltem		MMP375	MMP500	MMP750	MMP1000	MMP1500	MMP2000
Discharging capacity (Lt.)		375	500	750	1000	1500	2000
Feeding capacity (Lt.)		550	750	1125	1500	2250	3000
Tank capacity (Lt)		1050	1350	1900	2350	4100	5400
Theoretical productivity (m/h)		7.5	10	15	20	30	40
Maximum diameter of aggregate ( cobbe/crushed stone) (mm)		< 40	< 40	< 40	< 40	< 40	< 40
Cycle time (s)		180	180	180	180	180	180
Total weight (kg)		3125	3790	6003	7826	9130	11200
Size (mm)	Length	3419	3573	3994	4367	4674	5160
	Height	2058	2176	2343	2500	2766	3480
	Width	1860	2054	3141	3134	3408	3270
Agitating vane	Rotation Speed(r/min)	44+240(High Speed)	44+ 240(High Speed)	31	25.7	25	22
	Revolution Speed(r/min)	21	21	14	10.5	10.5	9.5
	Qty.	13	16	4	7	6	6
	Theoretical ife cycle	10,000 cans	10,000 cans	10,000 cans	10,000 cans	10,000 cans	10,000 cans
Plate Qty	Side plate	48	70	102	11	126	138
	Bottom plate	45	62	82	106	112	143
	Theoretical ife cycle	20,000 cans	20,000 cans	20,000 cans	20,000 cans	20,000 cans	20,000 cans
Mixing power (kw)		18.5	22	30	45	55	75
Hoister motor power (kw)		4	5.5	7.5	11	15	22
Lifting bucket speed (m/s)		0.3	0.3	0.3	0.3	0.3	0.3
Hydraulic pump station power (kw)		2.2	2.2	3	3	3	3
Water pump motor (kw)	Pressure pump	0.75	0.75	2.2	3	4	6.5
Water pump motor (kw)	Intake pump	1.1	1.1	2.2	2.2	2.2	2.2
Maximum weight for material (Lt)		200	200	400	500	700	800
Maximum weight for cement (Lt)		90	90	140	180	300	400
